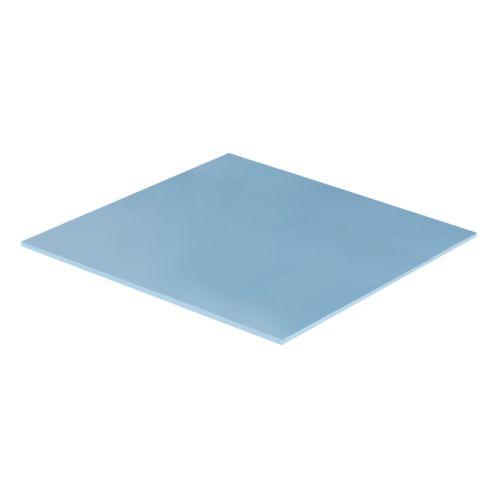

Arctic TP-3 Premium Performance Gap Filler Thermal Pad (Single), Easy Installation, 100 x 100 mm, 1.0 mm Thick, Blue

£7.91

Arctic TP-3 Premium Performance Gap Filler Thermal Pad (Single), Easy Installation, 100 x 100 mm, 1.0 mm Thick, Blue

Out of stock

SKU: HEATPADARC-TP3100-1MM Category:

Description

High Performance — Very Soft

Based on silicone and a special filler, TP-3 outperforms high-performance pads, especially when height differences of closely spaced chips typically occur due to manufacturing tolerances. The TP-3 offers excellent thermal conductivity despite extremely low hardness.

Minimization of Thermal Resistance

The thinner the pad, the lower the thermal resistance. The TP-3 pad with a thickness of 0.5 mm can easily be compressed to 0.3 mm and thus compensate for height differences between various components of up to 0.2 mm. Please note that due to the extremely low hardness, the installation of the 0.5 mm pad requires extra care. Please refer to the user manual.

Versatile Applications

Heat-conducting, vibration-damping, mouldable, electrically insulating — safe and easy to use. Thanks to its good compression properties, the soft heat conduction pad is particularly gentle on components and at the same time a good heat conductor. In addition to the standard format for M.2, the TP-3 is available in various sizes and thicknesses, which can be easily cut to the desired shape and size. This makes it ideal for RAMs, chipsets, and ICs of all kinds, which are used in PCs, laptops, consoles, graphics cards, and electronic devices in general.

Safe Handling

The ARCTIC TP-3 is electrically insulating, non-adhesive, and easy to handle. This means that optimal and safe heat transfer can be ensured in many application areas.

Bridging Gaps

The TP-3 is softer than conventional pads and therefore particularly suitable for different chip heights and possible tolerances. Thanks to their good compressibility properties, the thermal pads act as the perfect gap filler and bridge uneven surface and air gaps without stressing sensitive and protruding components.

10%

off, especially for you 🎁

Sign up to receive your exclusive discount, and keep up to date on our latest products & offers!

We don’t spam! Read our privacy policy for more info.

Additional information

Weight 0.045 kg
Manufacturer Number

ACTPD00053A

EAN Number

4895213703963

Colour

Blue

Dimensions

100 x 100 mm Pad Thickness: 1 mm

#Hide#Pad Thickness

1.0 mm

Hardness

55 Shore OO

Continuous Use Temperature

-40~150 °C

Specific Gravity

3.4 g/cm3

Dielectric Constant (1MHz)

5.19

Flammability Rating

UL 94 V-0

Brand

ARCTIC
