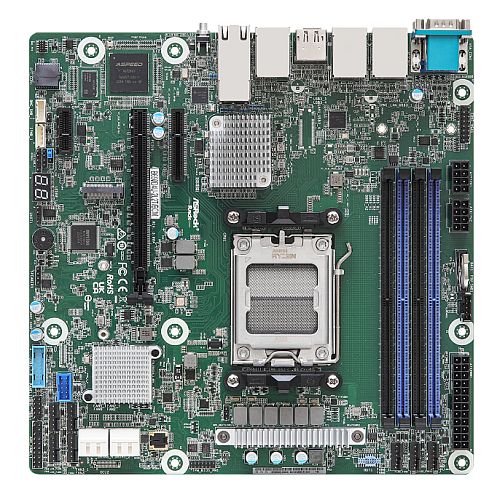

Asrock Rack B650D4U-2L2T/BCM, AMD B650E, AM5, Micro ATX, 4 DDR5, HDMI, DP, 2x 10G LAN, IPMI Remote Management, PCIe5, 1x M.2

£542.08

Asrock Rack B650D4U-2L2T/BCM, AMD B650E, AM5, Micro ATX, 4 DDR5, HDMI, DP, 2x 10G LAN, IPMI Remote Management, PCIe5, 1x M.2

Out of stock

SKU: ARMBB650D4U-2L2TBCM Category:

Description

B650D4U-2L2T/BCM


  • Micro-ATX (9.6"x 9.6")
  • Support AMD Ryzen 7000 series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
  • Supports 1 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 2 RJ45 (1GbE) by Intel® i210
  • 4 SATA 6Gb/s
  • 1 HDMI, 1 DisplayPort
  • Remote management (IPMI)







System BIOS

BIOS Type:
AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM

BIOS Features:
Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5


Hardware Monitor


Temperature:
CPU, DDR, MB, Card Side, Chipset, 10G LAN, M.2 slot


Fan:
Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)


Voltage:
VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_V10_PHY_DIG, VOLT_VDD_1P8, VOLT_MD_VDDO, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V


Environment

Temperature:

Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

Humidity:
Non operation humidity: 20% ~ 90% ( Non condensing)



10%

off, especially for you 🎁

Sign up to receive your exclusive discount, and keep up to date on our latest products & offers!

We don’t spam! Read our privacy policy for more info.

Additional information

Weight 1.282 kg
Manufacturer Number

B650D4U-2L2T/BCM
EAN Number

4711430520964
Motherboard Type

Server / Workstation
Form Factor

Micro ATX
Socket

AMD AM5
Chipset

AMD B650E
#Hide#DDR Type

DDR5
CPU Support

Supports AMD Ryzen 7000 series Processors Single Socket AM5 (LGA 1718) Up to 170W with proper cooling solution Click here for CPU support list
RAM Technology

DDR5 (Dual Channel)
RAM Slots

4 x DIMM
Brand

ASROCK_RACK
