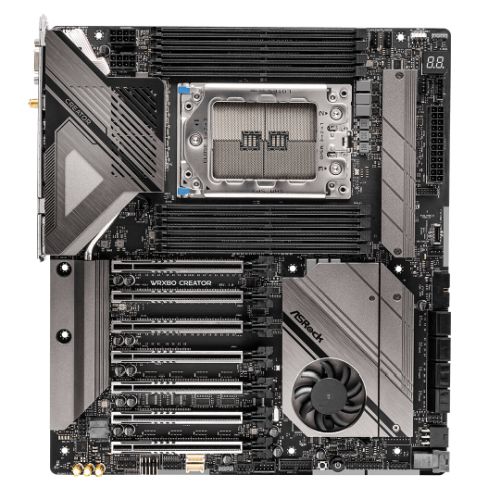

Asrock WRX80 CREATOR R2.0, AMD WRX80, sWRX8, EATX, 8 DDR4, Wi-Fi 6E, Thunderbolt 4, Dual 10G LAN & IPMI, 2x M.2

£745.33

Asrock WRX80 CREATOR R2.0, AMD WRX80, sWRX8, EATX, 8 DDR4, Wi-Fi 6E, Thunderbolt 4, Dual 10G LAN & IPMI, 2x M.2

7 in stock

SKU: ASMBWRX80CREATORR2 Category:

Description



WRX80 Creator R2.0


  • Supports AMD Ryzen™ Threadripper™ PRO 3000WX/5000WX Series Processors
  • 8 Power Phase Design, 105A SPS
  • 14 Layer Server-Grade Low-Loss PCB
  • Supports DDR4 4533+(OC)
  • 7 PCIe 4.0 x16
  • 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4),
  • 1 Hyper M.2 (PCIe Gen4 x4 & SATA3),
  • 1 U.2 (PCIe Gen3 x4)
  • 2 Thunderbolt™ 4 Type-C
  • 5 USB 3.2 Gen2 (1 Front Type-C, 4 Rear)
  • 6 USB 3.2 Gen1 (4 Front, 2 Rear)
  • 7.1 CH HD Audio (Realtek ALC4050H+ALC1220),
  • Nahimic Audio
  • Dual Marvell (Aquantia) 10Gbe LAN,
  • 1 Dedicated IPMI LAN
  • Intel® 802.11ax (WiFi 6E) + Bluetooth






Optimized VRM Design
  • SPS (Smart Power Stage) – Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
  • 7W/mK MOSFET Thermal Pads – This thermal pads are much more effective than normal pads. With a 7 watt/mK thermal conductivity it is able to effectively dissipate heat from MOSFET
  • 14 Layer PCB – The 14 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!2oz Copper PCB – 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
Optimized VRM Design
  • Composite VRM Heatsink – It is equipped with a composite VRM heatsink combining dual fans, aluminum fin array and heat pipe for maximum heat dissipation.
  • Server-Grade Low-Loss PCB – The server grade PCB prevents PCB bending and improves signal integrity, giving higher PCIe 4.0 and memory performance as well as system stability, giving a reliable and long-lasting system without any compromise.
  • Digi Power – Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

PCIe Gen4 with Surface Mount Technology
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 4.0 standard.

5 x PCIe Gen4 x16
With AMD Ryzen™ Threadripper™ PRO processors, ASRock WRX80 Creator supports 5 full speed PCIe gen4 x16 slots, deliver all the performance of PCIe 4.0 to your GPU and add-on cards. Fullfill all the professional design, deep learning, simulation and rendering applications.

Thunderbolt Technology
  • Thunderbolt™ 4/USB4 Type-C – Thunderbolt™ 4/USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.
  • Fast Charging Technology – Enjoy the superfast charging rate, up to 9V@3A 27W with the next generation PD 3.0!

Nahimic Audio
  • Audio That Matters – Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
  • Enhance Communication Quality – The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
  • Sound Tracker – The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
  • Works on any devices – Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

Polychrome RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

Dual AQUANTIA® / Marvell 10GbE LAN

equipped with dual Marvell (Aquantia) 10GbE controller. The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. It offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC.

Wi-Fi 6E 802.11ax
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Flexible Integrated I/O Shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

Aspeed® AST2500 BMC Controller

AST2500 provides customer the best performance server management solution. In additional to the advanced BMC(Baseboard Management Controller) features, the on chip PCIe 2D VGA provides server systems with local display capability without adding extra cost for VGA add-on card. The embedded ARM11 and DDR4 1600Mbps meet the increasing performance requirements of the server system.

10%

off, especially for you 🎁

Sign up to receive your exclusive discount, and keep up to date on our latest products & offers!

We don’t spam! Read our privacy policy for more info.

Additional information

Weight 2.8 kg
Manufacturer Number

WRX80 CREATOR R2.0

EAN Number

4710483941368

Motherboard Type

Desktop

Form Factor

Extended ATX

Socket

AMD WRX8

Chipset

AMD WRX80

#Hide#DDR Type

DDR4

CPU Support

Click here for CPU support

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

Brand

ASROCK
