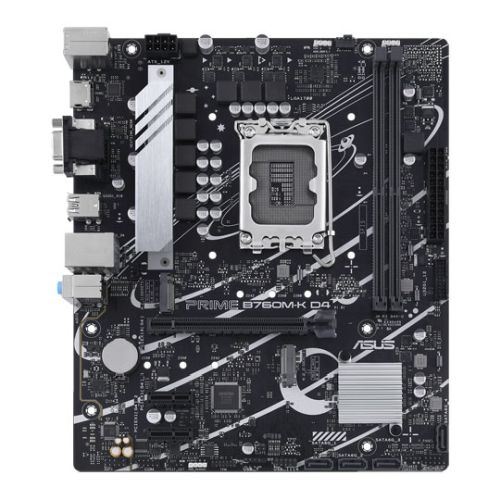

ASUS Prime B760M-K D4, an Intel® B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, VGA, HDMI®, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync



  • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
  • Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
  • Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware





Prime

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.



Flexibility

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.




Cooling

PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.




Performance

The PRIME B760 series are built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.



Customization

PRIME B760 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

                                             ** Click here for full product details **


Weight 0.93 kg
Brand

ASUS

EAN Number

4711387006917

Manufacturer Number

90MB1DS0-M1EAY0

Form Factor
Socket

Intel 1700

Chipset

Intel B760

#Hide#DDR Type

DDR4

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

RAM Speeds
Maximum Memory

64GB

Graphics

Integrated Graphics* *Graphics specifications may vary between CPU types

Graphics Ports

1 x VGA 1 x HDMI

PCI/PCI Express

1 x PCIe 4.0 x16 2 x PCIe 4.0 x1

Storage

4 x SATA III 1 x M.2 (2242/2260/2280) – PCIe 1 x M.2 (2242/2260/2280) – PCIe

RAID

Intel Rapid Storage Technology supports SATA RAID 0/1/5/10

Wireless
LAN

2.5GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

6 x USB 3.2 Gen1 (4 at back, 2 at mid-board) 6 x USB 2.0 (2 at back, 3 at mid-board)

Back Panel I/O Ports

4 x USB 3.2 Gen1 Type-A 2 x USB 2.0 1 x VGA 1 x HDMI 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks  1 x PS/2 Keyboard/Mouse combo
