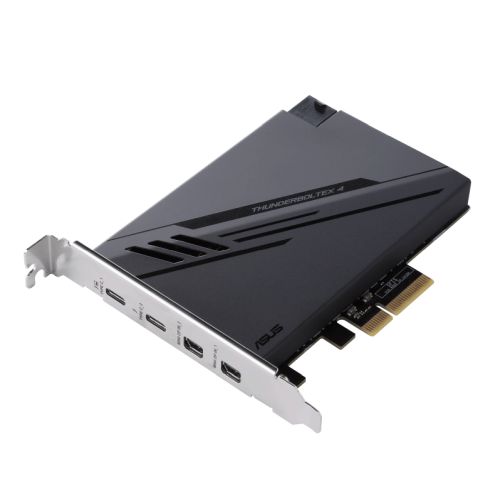

Asus ThunderboltEX 4 Card, PCI Express, 2 x Thunderbolt 4 (USB-C), 2 x Mini DisplayPort In, TBT Header, USB 2.0 Header
£108.85
7 in stock
Description
Asus ThunderboltEX 4 expansion card, dual Thunderbolt 4 (USB-C) ports, DisplayPort 1.4, PCIe 3.0 x4 interface
- Intel-certified Thunderbolt 4 add-on card
- 40 Gbps bi-directional bandwidth for superfast data transfers and video output
- Dual Thunderbolt 4 ports (USB-C), with support for up to five Thunderbolt devices in a daisy chain
- DisplayPort 1.4 for 8K Ultra HD support
Enable blisteringly fast speeds and any-way-up connectivity
ASUS ThunderboltEX 4 is a Thunderbolt 4 add-on card that offers 40 Gbps bi-directional bandwidth, USB4 device compatibility, and DisplayPort 1.4. It supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C charging for laptops.
Daisy-Chain up to 5
Thunderbolt devices per port
3 devices + 2 Thunderbolt monitors
Daisy-Chain up to 5
Thunderbolt devices per port
4 devices + 1 Thunderbolt monitor
Additional information
| Manufacturer Number | 90MC09P0-M0EAY0 |
|---|---|
| EAN Number | 4711081115243 |
| Ports | 2 x USB Type-C (Support Thunderbolt 4 & USB 4) – Type-C_1 up to 20V/5A, 100W quick charge, Type-C_2 up to 9V/3A, 27W 2 x mini DisplayPort IN ports |
| Transfer Rate(s) | up to 40Gbps for Thunderbolt devices |
| Host Interface(s) | PCIe 3.0 x4 |
| Internal Interfaces | 1 x 6-pin PCIe power connector for quick charge function 1 x USB 2.0 header 1 x Thunderbolt header |
| Additional Features | See Overview |
| Dimensions | 11.77 x 18.05 cm |
| Package Contents | ThunderboltEx 4 card 2 x mini DisplayPort cables 1 x USB 2.0 cable 1 x 14-1 pin Thunderbolt header cable 1 x User manual 1 x Support DVD with Thunderbolt driver |
| Brand | ASUS |
