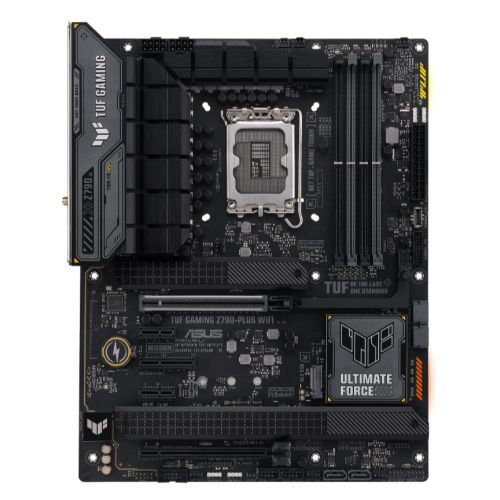

TUF GAMING Z790-PLUS WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability.



Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.



  • Power stages – 16+1 DrMOS power stages (rated 60A) with enlarged VRM heatsinks
  • PCIe – PCIe® 5.0 for graphics cards
  • Memory module support – 7200+ MT/s, AEMP II
  • Connectivity – USB 3.2 Gen 2×2 Type-C® and a front-panel USB 3.2 Gen 2 Type-C® header
  • PC DIY friendly – PCIe Q-Release
  • Ethernet – 2.5 Gb Ethernet
  • WiFi 6E
  • AI Cooling II
  • Two-Way AI Noise Cancelation







AI Cooling II

Balance the thermals and acoustics of any build with a single click. An ASUS-exclusive algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.





All Around Efficiency

The Power Saving function contains several settings that can easily optimise power consumption and maximise energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.





UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.





EZ Mode

EZ mode displays vital settings and stats, and it offers guided wizards, drag-and-drop functionality, and one-click application of important settings – all to help you get your rig up and running in no time.





Advanced Mode

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.





Asus Armory Crate

The ASUS-exclusive Armoury Crate software centralises control of all supported gaming products. A single intuitive interface lets you customise RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also displays information from, and enables control of, a growing hardware ecosystem. Armoury Crate also enables easy product registration and features a news section to keep you in touch with the gaming community.





DRMOS Power Stages

16+1 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.





Six-Layer PCB Design
The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

8+8 PIN ProCool Power Connectors
Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.





TUF Components

Incredibly durable military-grade components including chokes and capacitors which offer fantastic stability and long life.





DIGI+ VRM

The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimised for ultra-smooth and ultra-clean power delivery to the CPU at all times.





PCIe 5.0 Ready

The four PCIe 4.0 M.2 slots support up to two 22110 devices and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to four PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.

WiFi 6E
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It delivers ultrafast wireless networking speeds and improved capacity, as well as better performance in dense wireless environments.


Intel®2.5 Gb Ethernet
On-board 2.5 Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds by up to 2.5X. Using your existing LAN cable, you can take advantage of this networking upgrade to reduce lag, experience smoother high-resolution video streams, and enjoy faster file transfers.

Two-Way AI Noise Cancelation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are muffled so you can hear and be heard with excellent clarity while gaming or during calls.

Realtek 7.1 Channel Audio
S1220A Codec
The TUF GAMING Z790 series utilizes an audio codec designed in close collaboration with Realtek — the Realtek S1220A. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.

DTS Audio Processing
DTS® Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.

Outshine The Competition

A well-tuned system deserves a matching aesthetic. The TUF GAMING Z790 series features edge lighting to enhance its rugged look, and ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips. It can all sync with an ever-growing portfolio of Aura-compatible hardware.


Weight 2.01 kg
Brand

ASUS

EAN Number

4711387014509

Manufacturer Number

90MB1D80-M1EAY0

Form Factor

ATX

Socket

Intel 1700

Chipset

Intel Z790

#Hide#DDR Type

DDR5

RAM Technology

DDR5 (Dual Channel)

RAM Slots

4 x DIMM

RAM Speeds
Maximum Memory

128GB

Graphics

Integrated Graphics* *Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI 1 x DisplayPort

PCI/PCI Express

1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (supports x4 mode) 1 x PCIe 4.0 x4 2 x PCIe 3.0 x1

Storage

4 x SATA III 1 x M.2 (2242/2260/2280/22110) – PCIe 1 x M.2 (2242/2260/2280) – PCIe 1 x M.2 (2242/2260/2280/22110) – PCIe 1 x M.2 (2242/2260/2280) – SATA & PCIe

RAID

Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10

Wireless

Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3

LAN

2.5GB LAN

Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
Back Panel I/O Ports

1 x USB 3.2 Gen2x2 Type-C 3 x USB 3.2 Gen2 (2 Type-A, 1 Type-C) 4 x USB 3.2 Gen1 Type-A 1 x DisplayPort 1 x HDMI 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet 5 x Audio jacks 1 x Optical S/PDIF out
