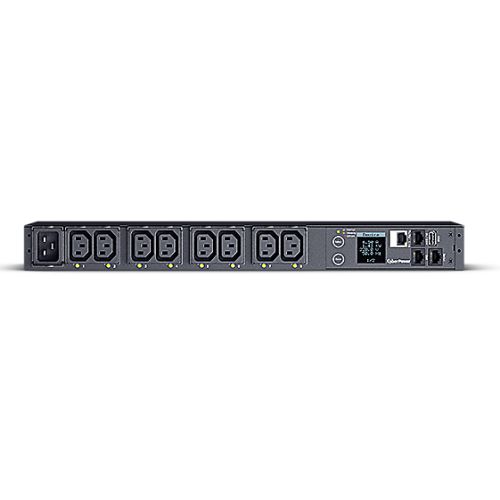

CyberPower PDU81005 Switched Metered-by-Outlet Power Distribution Unit

  • Real-time Local/Remote Monitoring and Switching of Individual Outlet
  • Work under High Temperature
  • +/-1% Measurement Accuracy
  • Digital Real-time Load Display
  • Hot-swappable LCD Design
  • LED Status Indicator
  • Support ENVIROSENSOR
  • PowerPanel Management Software
  • Cord Retention Tray
  • Controllable Receptacles with Power Sequencing
  • Ultra Low Power Consumption
  • Industrial-grade Metal Housing
  • User Configurable Color LCD
  • Rotatable LCD for Proper Display Orientation
  • Firmware Upgrade via USB
  • User-upgradeable Firmware
  • Adjustable Mounting Brackets
  • IEC Receptacle Locking





CyberPower PDU81005 is a network-grade power distribution unit ideal for data center and enterprise applications, providing real-time local/remote monitoring and on/off control of individual outlet for remote reboots, scheduled on/off and more. The Daisy Chain function also allows the PDUs connected together to be monitored and controlled under one IP address.

The digital LCD display is color configurable and rotatable, allowing users to easily maintain and monitor the PDU. Users can change LCD’s colors to easily categorize devices.

The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel Power Management Software and power management web interface for real-time remote monitoring and configuration. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.








Weight 4.23 kg
Brand

CyberPower

EAN Number

4712856278446

Manufacturer Number

PDU81005

Phase

Single Phase

Input

Nominal Input Voltage: 100 ~ 240 Vac Input Frequency: 50 / 60 Hz Maximum Input Current: 16A Input Connector Type: IEC C20 x 1 Power Cord Length: 10 ft Power Cord Length: 3.05 m

Output

Output Voltage: Depends on Input Idle Power Consumption: < 5W Outlets – # of Bank(s): 1 Outlet(s): 8 Total Outlet(s) Front: 8 Outlet Type: IEC C13 x 8 Remote Individual Outlet Control

LCD Information Display

Input Voltage (Volts) Input Frequency (Hz) Current Level (Amps) Power Consumption (Kilowatts) Network Information Serial Number Environment Status Hardware Version Firmware Version

Hot-swappable LCD Module

Yes

LCD Setting & Control

Outlet Control LCD Settings Reset / Reboot

LED Indicators

PDU Status, Tx/Rx, Link, Outlet

Additional Ports

USB Type-A RJ45 RJ45 (for Serial) RJ45 (for ENVIROSENSOR/Daisy Chain (In)) RJ45 (for Daisy Chain (Out))

Form Factor

1U Vertical Rackmount 1U Horizontal Rackmount

Enclosure Construction

Steel

Cord Retention Tray

Yes

IEC Receptacle Locking

Yes

External Site Ground Pin

Yes

Adjustable Mounting Brackets

2 Set (L-short, L-long)

Weight/Dimensions

2.1 kg (WxHxD) 433 x 44 x 112 mm

Environmental
Certifications

CE, FCC Class A, UL60950, UL62368, EN 55032 Class A RoHS

Additional Features

See Overview
