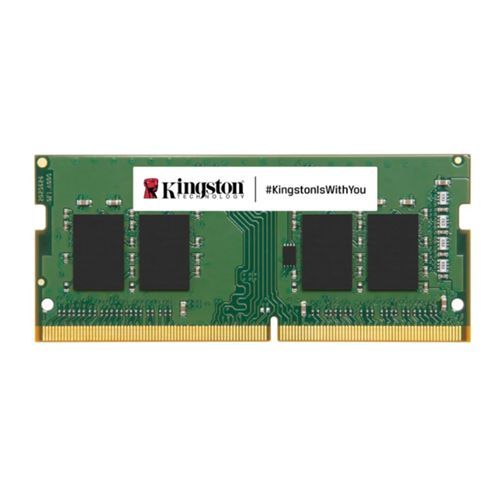

Kingston ValueRAM 8GB, DDR4, 3200MHz (PC4-25600), CL22, SODIMM Memory

£35.99

154 in stock

Free shipping on orders over £150

  • Check Mark Buy Now - Pay Later available
  • Check Mark Price match UK stockists
  • Check Mark Secure Payments
  • Check Mark 100% UK Stock
The lowest price ( 9 July 2025 ): £32.38 SKU: D4SO8G32KVR22S8 Category:

Description

8GB 1Rx8 1G x 64-Bit PC4-3200 CL22 260-Pin SODIMM


ValueRAM's KVR32S22S8/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers
  • Power Supply: VDD = 1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP = 2.5V Typical
  • VDDSPD = 2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Single-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.18” (30.00mm)
  • RoHS Compliant and Halogen-Free
