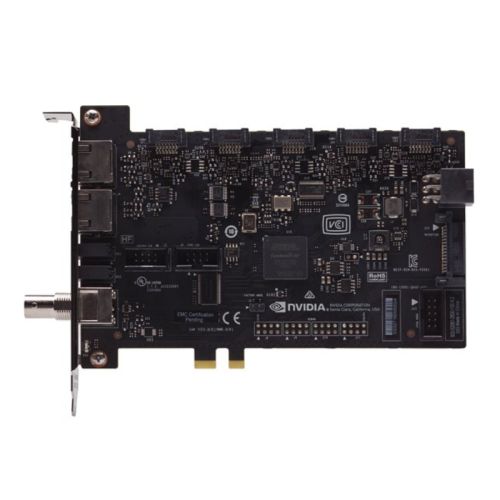

PNY NVidia Quadro Sync II Board – Synchronize up to 4 Pascal GPUs per Card, PCIe, 2x RJ-45 Frame Lock, BNC Genlock connector

£1,010.82

PNY NVidia Quadro Sync II Board – Synchronize up to 4 Pascal GPUs per Card, PCIe, 2x RJ-45 Frame Lock, BNC Genlock connector

4 in stock

SKU: PNYQUADSYNCB2 Category:

Description

Essential Professional Graphics For Maximum Productivity

  • 2x RJ-45 Frame Lock connectors
  • BNC Genlock connector
  • Status indicator LEDs
  • 4 sync edge connectors
  • Supports up to 81 Quadro GPUs
  • Projector Overlap
  • Stereoscopic 3D Support
  • PCIe or SATA Power
  • Secure cable

The NVIDIA Quadro Sync II card provides the solution for the advanced synchronized display requirements. The Quadro Sync II card can synchronize up to 4 Pascal GPUs per card for 16 synchronized displays per Sync II card, and with 2 Sync II cards per system, up to 8 Pascal GPUs per chassis for a total of 32 synchronized displays per system. The NVIDIA Quadro Sync II card combined with Quadro Pascal-based GPU graphics is the solution for professional synchronized display deployments.

Benefits

  • The ability to synchronize the display outputs from 4 Quadro GPUs for a total of 16 synchronized displays per Sync II cards
  • Two Sync II cards per chassis can provide up to 32 synchronized displays per chassis.
  • Sync II cards can be connected to Sync II cards in another chassis to synchronize displays between systems in visualization clusters.
  • Sync II cards can be connected to an external timing signal, synchronizing the output of the GPUs connected to the Sync II card to the external timing.
  • Mosaic technology enables up to 16 displays or projectors per systems or per cluster to act like a single large virtual display. The Sync II card can synchronize the 16 displays for Mosaic to provide artifact free images across all 16 displays.
  • Create multi-display stereoscopic visualization clusters
  • Seamlessly blend multi projector solutions with no visual artifacts
  • Support up to two Mosaics. Two Quadro Sync II connected together with the 2 × 7 header can support one to four Mosaics.

10%

off, especially for you 🎁

Sign up to receive your exclusive discount, and keep up to date on our latest products & offers!

We don’t spam! Read our privacy policy for more info.

Additional information

Weight 0.36 kg
Manufacturer Number

VCQPQUADROSYNC2-PB

EAN Number

3536403352240

Connector(s)

PCIe host interface 2 x RJ-45 Frame Lock connectors BNC Genlock connector

Features

Status indicator LEDs Supports up to 8* Quadro GPUs Projector Overlap Stereoscopic 3D Support PCIe or SATA Power Secure cable *Via adapter/connector/bracket See Overview for more details

Compatibility

Quadro GP100 Quadro P6000 Quadro P5000 Quadro P4000 Requires any free expansion slot

Accessories

Printed Quick Start Guide Four 30.5 cm connect cables Two 61 cm connect cables

Package Type

Retail

Package Weight

0.3600 kg

Warranty

3 Years

Brand

PNY
