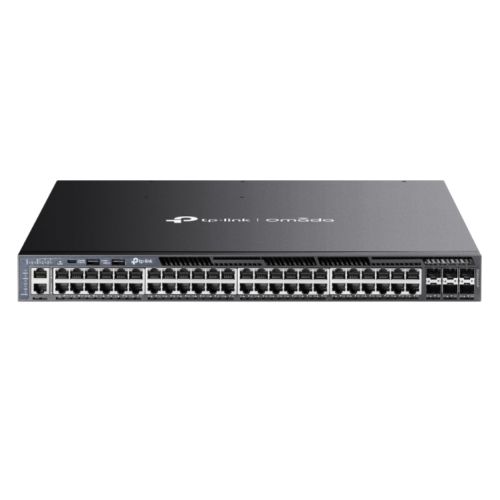

TP-LINK (SG6654XHP) Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6x 10G SFP+ Slots, USB
£2,320.00
Out of stock
Free shipping on orders over £150
- Buy Now - Pay Later available
- Price match UK stockists
- Secure Payments
- 100% UK Stock
Description
Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6 10G Slots
- 48x Gigabit RJ45 PoE+ ports
- 6x 10 Gbps SFP+ slots
- Up to 1440 W total PoE budget
- Physical Stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two field-replaceable power supplies, VRRP, and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
What This Product Does
Omada SG6654XHP, an advanced L3 managed PoE+ switch, is crafted for convergence layer requirements with features like L3 routing, rapid 10 Gbps wired connectivity, stacking, and redundant power supplies. It offers an impressive 1440 W PoE budget,* 48× gigabit RJ45 PoE+ ports, 6× 10 Gbps SFP+ slots, and physical stacking. Combined with centralized management, strong security, and comprehensive management features, SG6654XHP is an ideal, reliable network solution for SMBs, enterprises, and ISPs.
IEEE 802.3at/af-compliant Power over Ethernet
48x IEEE 802.3at/af-compliant PoE ports supply up to 1440 W total power to 802.3at and 802.3af devices, with each port supplying up to 30 W power. Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling.
High-speed Connectivity and Powerful Stacking
48 gigabit RJ45 ports and 6× 10 Gbps SFP+ slots provide up to 216 Gbps switching capacity per unit. Up to 4 units of physical stacking with up to 864 Gbps switching capacity empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.
Highly Available
Optional field-replaceable and hot-swappable redundant power supplies and VRRP make it an ideal choice for reliable networking architecture.** ERPS supports rapid protection and recovery in a ring topology.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).‡ The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG6654XHP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
Additional information
| Product Type | Network Switch |
|---|---|
| Brand | TP-LINK |
| Model | SG6654XHP |
| Switch Type | Managed |
| Switch Layer | Layer 3 |
| Poe Support | PoE+ |
| Stackable | Yes |
| Total Ports | 54 |
| Gigabit Ports | 48 |
| Sfp Plus Ports | 6 |
| Port Types | RJ45, SFP+ |
| Poe Budget Watts | 1440 |
| Poe Per Port Watts | 30 |
| Switching Capacity Gbps | 216 |
| Stacking Capacity | 4 |
| Stacked Switching Capacity Gbps | 864 |
| Power Supply Type | Redundant Hot-Swappable |
| Management Interfaces | Web GUI, CLI, SNMP, RMON, USB |
| Supported Protocols | RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server, DHCP Relay |
| Security Features | ACL, Port Security, DoS Defend, 802.1X, Dynamic ARP Inspection, MAB, SSH |
| Omada Compatible | Yes |
| Centralized Management | Yes |
| Ieee Standards | 802.3at, 802.3af, 802.1X |
| Form Factor | Rack Mount |
| Connectivity Speed | 1 Gbps, 10 Gbps |
| Brand | |
| EAN | 4895252501421 |
| Weight | 12.1000 kg |
