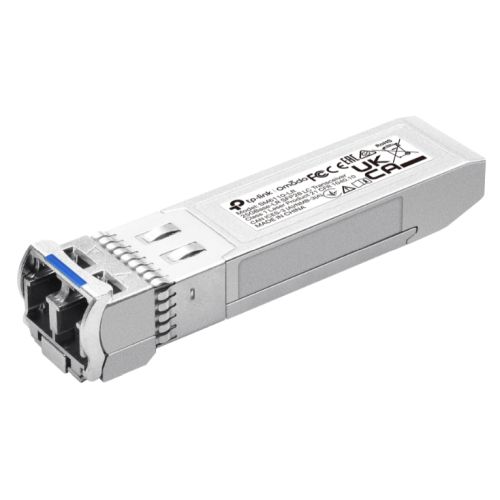

TP-LINK (SM6110-LR) Omada 25GBase-LR SFP28 Single-Mode SFP+/SFP28 LC Transceiver, Hot-Pluggable, DDM Support, 1310 nm
£74.99
In stock
Free shipping on orders over £150
- Buy Now - Pay Later available
- Price match UK stockists
- Secure Payments
- 100% UK Stock
Description
Omada 25GBase-LR SFP28 LC Transceiver
- Single-mode SFP+/SFP28 LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Low Power Consumption no more than 1.2 W
- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
- Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.
What This Product Does
The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Additional information
| Product Type | SFP Transceiver |
|---|---|
| Brand | TP-LINK |
| Model | SM6110-LR |
| Series | Omada |
| Form Factor | SFP28 |
| Connector Type | LC |
| Fiber Type | Single-mode |
| Wavelength | 1310 nm |
| Data Rate | 10G, 25G |
| Standard | 25GBase-LR |
| Transmission Distance | 10 km |
| Fiber Cable Type | 9/125μm |
| Power Consumption | 1.2 W |
| Hot Pluggable | true |
| Ddm Support | true |
| Duplex | Full duplex |
| Msa Compliance | SFP+, SFP28 |
| Compatible Switches | SX6632YF, SG3428X, SG3452X |
| Port Compatibility | 10G ports, 25G ports |
| Brand | |
| EAN | 8885020622362 |
| Weight | 0.0600 kg |
