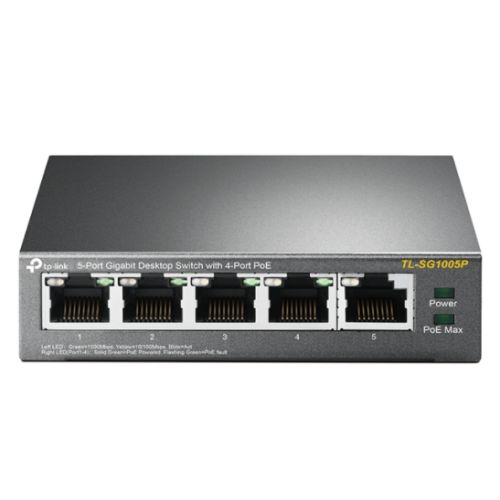

TP-LINK (TL-SG1005P) 5-Port Gigabit Unmanaged Desktop Switch, 4 Port PoE+, Steel Case

£45.72

TP-LINK (TL-SG1005P) 5-Port Gigabit Unmanaged Desktop Switch, 4 Port PoE+, Steel Case

149 in stock

SKU: SWI-5TPPOE1000 Category:

Description

  • 5 10/100/1000Mbps RJ45 ports
  • With four PoE ports, transfers data and power on one single cable
  • Working with IEEE 802.3af compliant PDs, expands home and office network
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Requires no configuration and installation



What This Product Does

TL-SG1005P is a 5 10/100/1000Mbps ports unmanaged switch that requires no configuration and provides 4 PoE+ (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.




Power over Ethernet

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).




Overload Arrangement

TL-SG1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 56W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.




Port Priority Function

Priority (Port 1=Port 2=Port 3>Port 4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 56W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 10W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 10W, no power will be supplied to Port 4.




Easy To Use

TL-SG1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link’s TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.

10%

off, especially for you 🎁

Sign up to receive your exclusive discount, and keep up to date on our latest products & offers!

We don’t spam! Read our privacy policy for more info.

Additional information

Weight 0.8 kg
Manufacturer Number

TL-SG1005P

EAN Number

6935364083229

Rackmountable

No

Managed

No

Number of Ports

5

Max RJ45 Transfer Rate

10/100/1000 Mbps

Interface(s)

5 x 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX

PoE Ports (RJ45)

Standard: 802.3 af compliant PoE+ Ports: Port1- Port4 Power Supply: 56W

Bandwidth

10Gbps

Power Supply

External Power Adapter (Output: 48VDC / 1.25A)

Brand

TP-LINK
